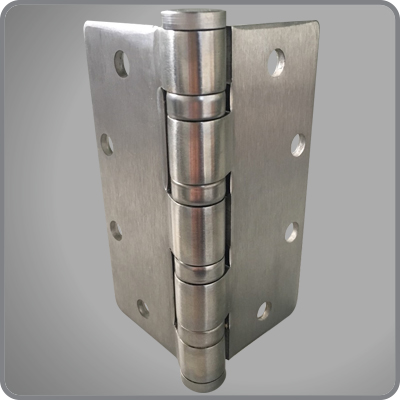

For use with heavy weight door or door requiring high traffic volume. Download the PDF for further details and specifications.
General Features:
- Two ball bearings
- Non-rising removable pin with tip and plug (NRP option)
- 12 number of wires
- Performance testing has shown that 1,250,000 cycles can be achieved. 4 conductor flat
cable which is capable of carrying 4 amps @ 24 Volts with a 16 amp in rush current for 300 milliamps. 4 amp in-line fuse needed to be provided to protect the cable from any overloador surge in power. - Hinges are supplied with flat plug connectors at each leaf with 12 wires at each leaf and two 6″ pigtails for use with Electro Lynx doors.
- Material: Stainless Steel with stainless steel pin, ANSI A5111 (Stainless Steel)
